Continuing from where I left off. Wiring continued… Pulling wires to where they need to go. Cutting to length, stripping, crimping a pin on, and inserting into the connector.. Rinse.. Repeat! It’s always a fun time contorting myself </end sarcasm/> on the front seat area to get underneath the panel..
I got the remaining GPS antennas installed.
I also got the switchpod finished up and wired down the A-pillar conduit.
I installed the GA-57X on the aft metal portion of the airframe. Just behind the AC evaporator to avoid interference.
One other thing I wanted to do before closing up the panel was to put the leather glareshield material in place with the two GPS pucks mounted on top of it. Below you can see me getting it lined up properly and the final product.
I then installed the Pitot static and AOA tubing, distributor blocks, and connected them up to the G5, GSU25’s and the alt static switch. I then mounted all the avionics back into place in the panel.
I also decided to pin out the harness that will go out in the right wing. It houses the roll servo and magnetometer. Without it the CAN bus wouldn’t have been terminated properly and communication errors would have happened. I have those things laying in the footwell for now. I’ll have to depin from the CPC connectors later to route the harness through the wings, but that’s easy enough.
A number of triple checks to make sure I didn’t see any shorts between power and ground and making sure +12V was connected to the + side of the battery and negative to negative.. The moment of truth came…..

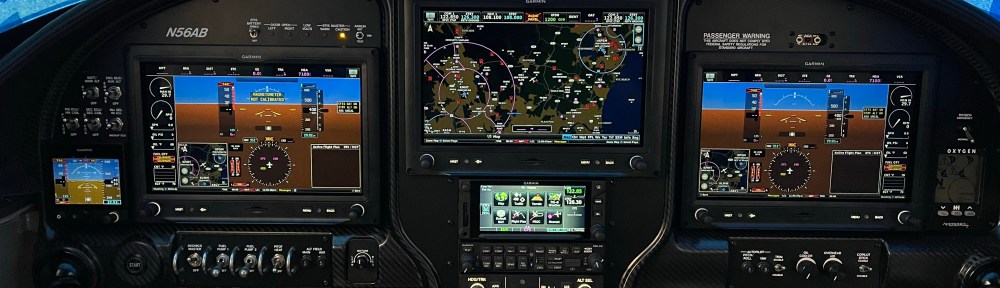

The panel powered up and everything seems to be working!!! A bunch of wiring work to get to this point, and it represents another major milestone in my build.
I really can’t say enough about the work that Aerotronics did to build this panel. They make it really easy to put it all together.
Now on to pushing forward and getting the remaining pieces finished up so I can get this bird to the airport and signed off to fly!
