Fuel SystemUpdate

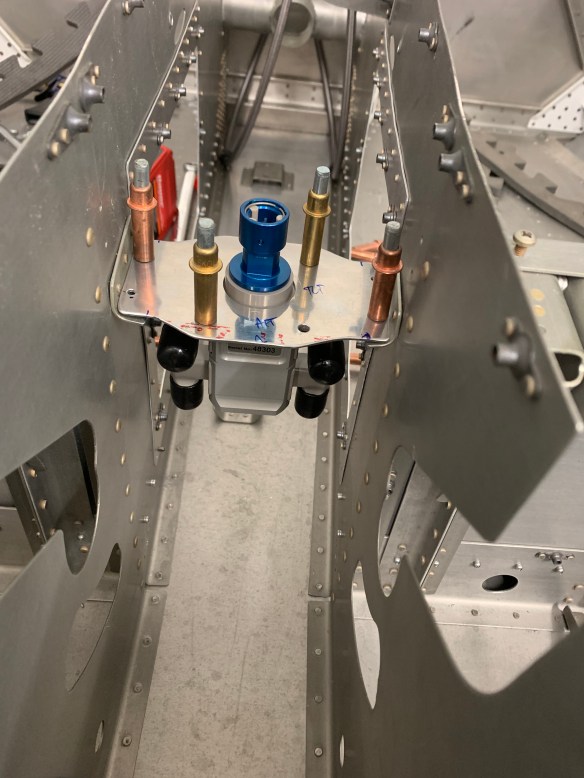

More progress being made on getting the fuel system components in place so I can measure hose lengths that I’ll need. Andair Fuel selector is now mounted in place.

With that done, I then moved on to fabricating two 11″ long angles to mount the fuel pump module on along with a piece of aluminum sheet cut to span the angles.

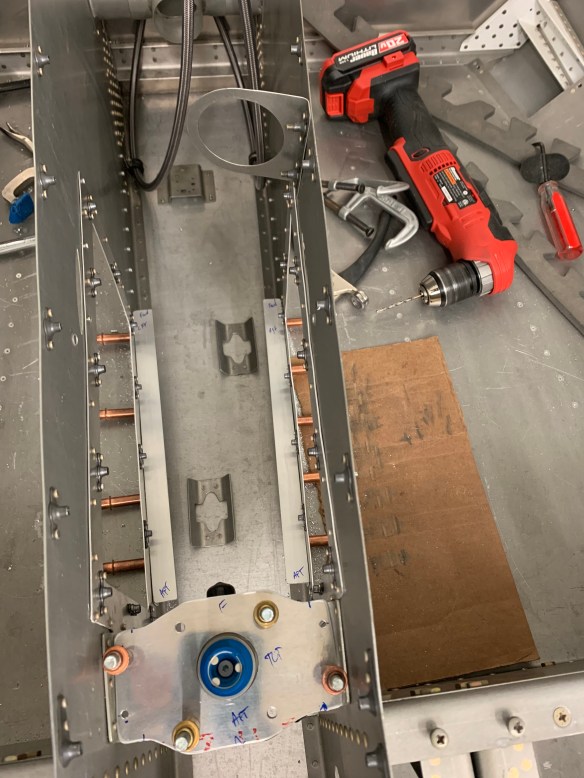

Looking down the tunnel at angles added

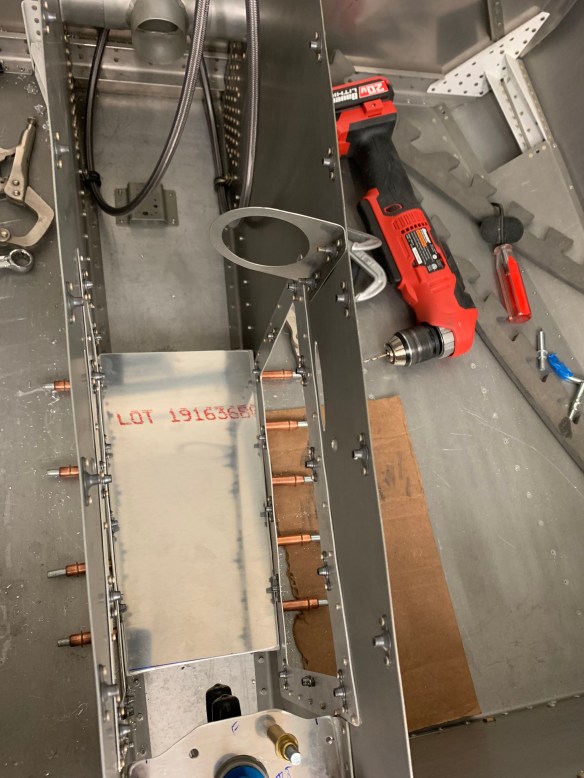

Sheet cut to size
Fuel pump in place

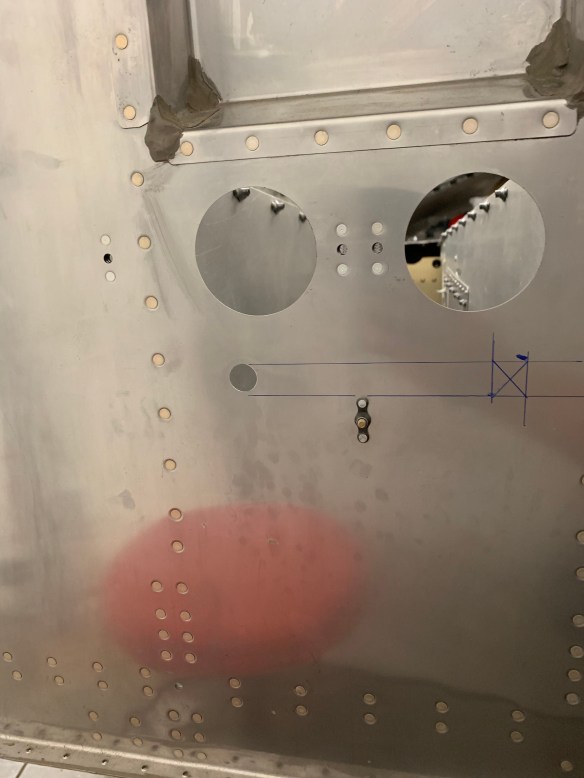

Then while waiting for parts to dry from priming, I went ahead and put a new hole in the firewall for the return fuel line. It’s a mirror image of the hole for the fuel supply. I marked the location based on the existing hole and then marked an “X” to drill from the approx. center. Happy with the results.

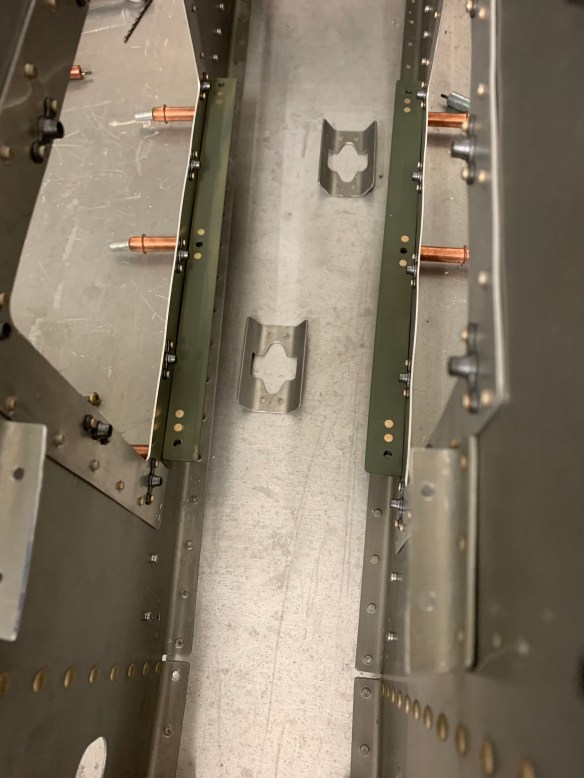

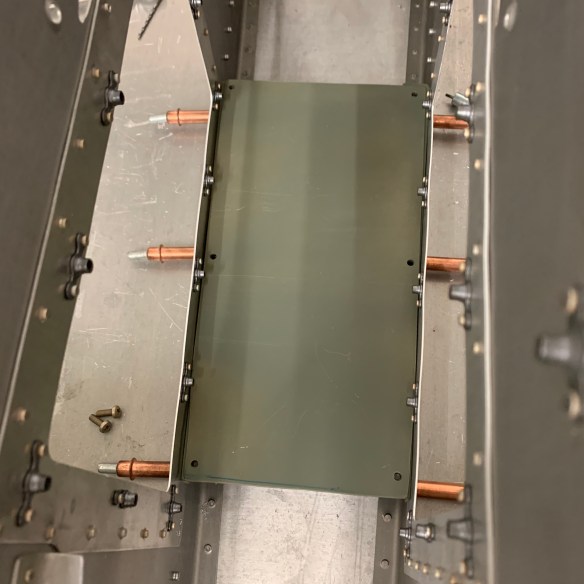

Then I riveted nut plates onto the angles to accept six #8 screws, clekoed them in place, and screwed the sheet onto them.

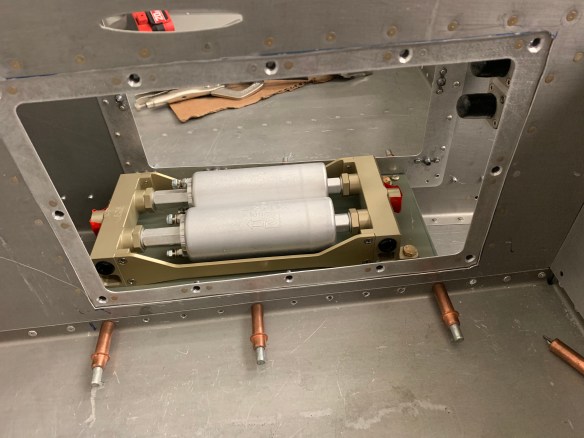

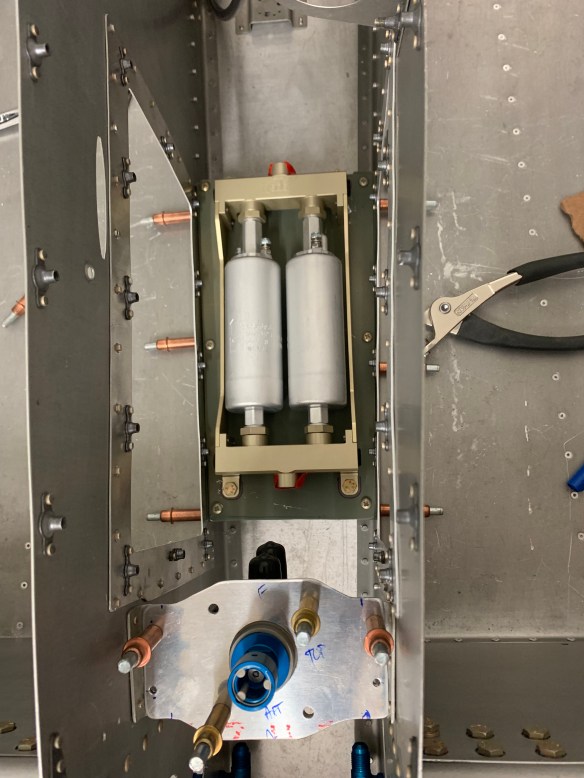

Then I drilled holes to bolt the fuel pump module onto the plate. Below is the final result and a view through Airward access panel in the tunnel sidewall.

I’m going to keep the angles cleko’ed for now until I get the fuel line hoses installed to make sure no adjustments need to be made.
